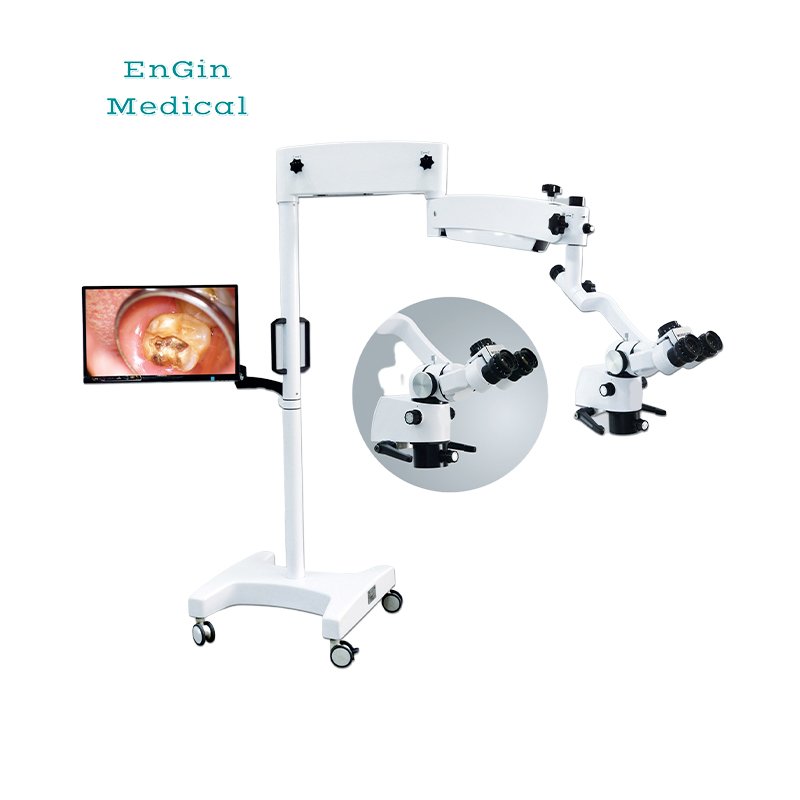

Dental LED Operating Microscope
- Simple damping-conditioning system (120° balancing arm)
The primary mirror can be easily maintained at any location with the movement - The adjustable binocular tube with 180° optics ginges
Ina different positions you can maintain an upright sitting position to gain maximum comfort - A fine-turing large objective lens and large variety-focus lens with 120mm lengthened working distance
Allows you to easily get clear facia and image, make the working distance automatic adjustment, easy to focusing - Bright and clear. strong stereoscope impression optical system
Allows you to get the best image which you have never seen before, it is convenient for you subtle observation, and improve your working efficiency and treatment.
Additional information
Product Details

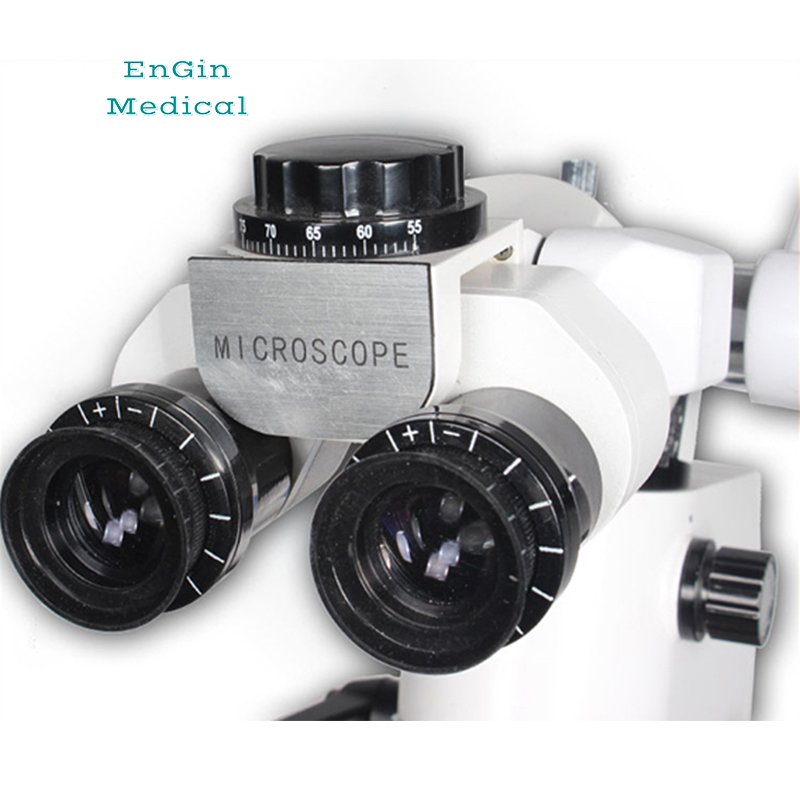

Binocular tube | Adjustable binocular tube with 0-180° optics hinge |
Binocular tube foci | F=170mm |
Rotating disc type PD adjuster range | 50mm-80mm |
Diameter of the field of view | 66m-10.4mm |
Eyepiece | 12.5X / 18B |
The adjustable range of visual degree | ±6D |
Five-step drum apochromatic large objective | working distance 250mm, adjustable range is 20mm |
Adjustable double handlebar | |
LED illumination. object plane illuminance F250. The Maximum Illuminance ≥30000~60000lx, | adjustable brightness, with automatic power-off switch |
Diameter of illuminating light spot (F=250) | ø85mm |
Filter adjuster | yellow, green, and heat filter |

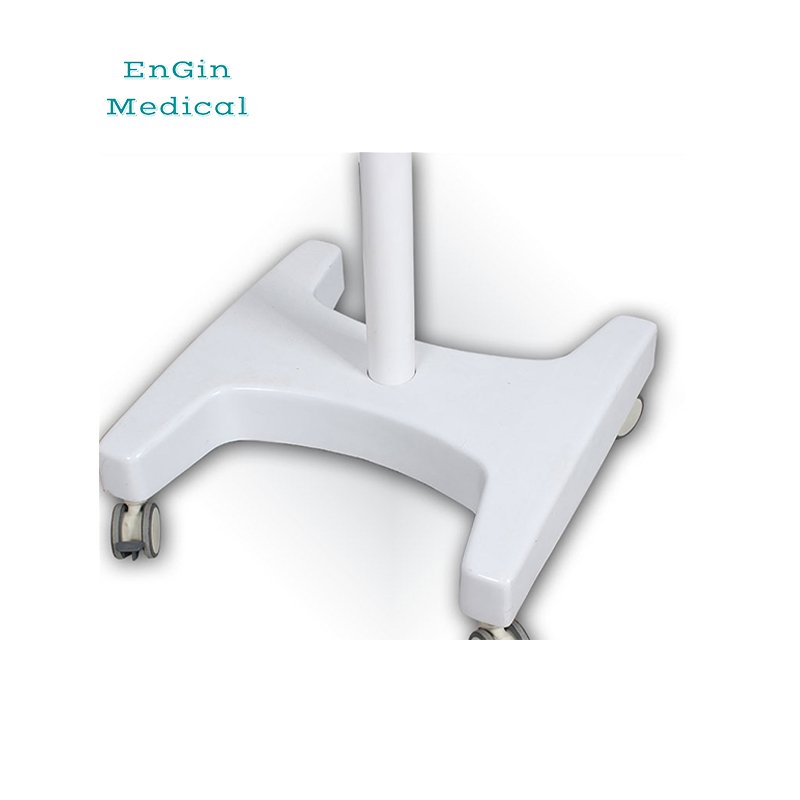

movable floors stand frame: | Including base, column, big cross arm(510mm), small cross arm(620mm), and so on, the spread length of total arm: 1350mm, height:1750mm, the range of up-down ≥350mm |

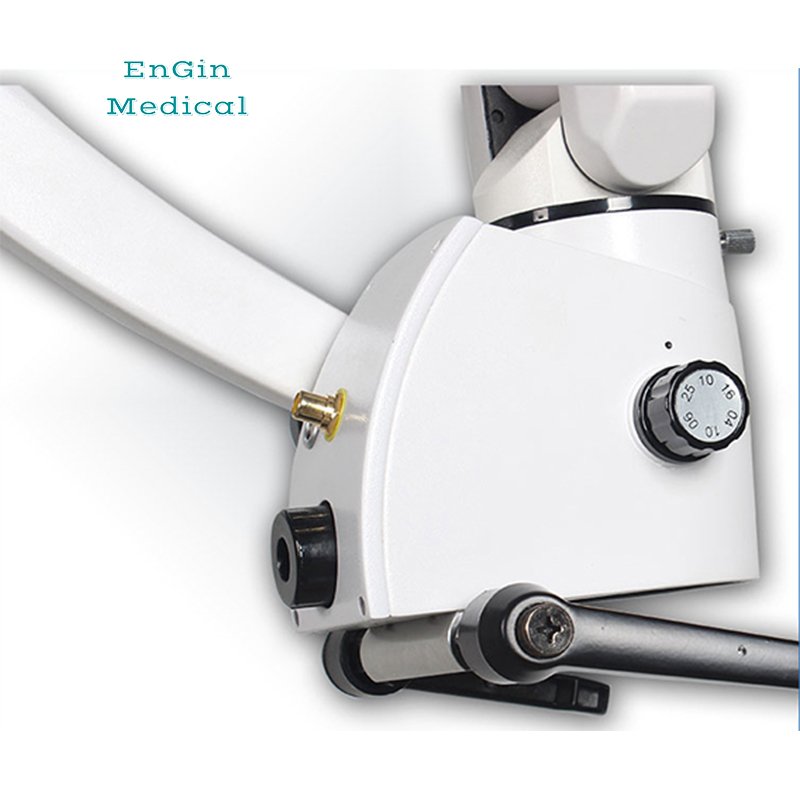

120° balancing arm with damping: | Freely rotate to any position with damping |
Optional parts | Large zoom objective 200mm~320mm |
