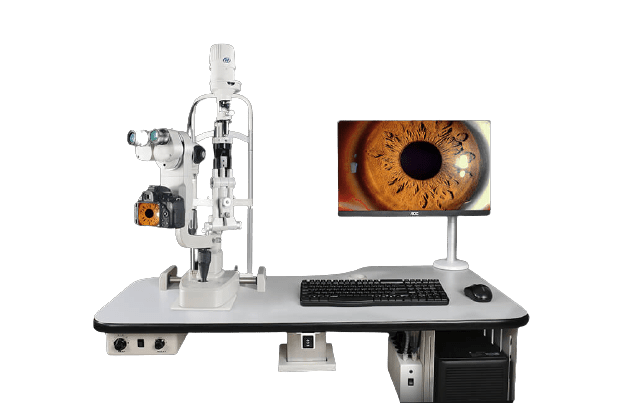

Digital Slit Lamp
- What doctors see from eyepieces is live on the monitor of both camera and PC.
- Images are taken by joystick or “Space” key of keyboard or button of software
- Up to 18 megapixels via Canon or Nikon DSLR camera.
- Background illumination is specifically designed for a darkroom environment, for better cornea photography. Professional software for
- images capturing, processing, and patients database management.
Additional information
Product Details
Microscope Type | Galilean stereoscopic microscope |
Magnification | Five Steps by drum rotation |
Eyepiece | 12.5X |
Field of View | 6 x (φ33) 10x(φ22.5) 16x (φ14) 25x (φ8.8) 40x (φ5.5) |
Range of Pupil Distance | 45 mm~75 mm |
Adjustment of Diopter | -5D~+3D |
Slit Width | 0mm~14mm adjustable(slit is round when the slit width is 14mm) |
Slit Height | 1mm~14mm adjustable |
Aperture Diameter | φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm |
Slit Angle | 0°~180° adjustable |
Slit Inclination | 5°, 10°, 15°, 20° |
Filter | heat absorption, grey, redfree, cobalt blue |
Illumination Bulb | 12V/ 30W Halogen Bulb |
Maxial Illuminance | ≥280000 Lx |
Preceding Mirror | -58.7D |
Collection Medium | DSLR Camera |
Illuminations Type of Filming | Background illumination |
Input Voltage | AC220V±22 V, AC110V±11 V |
