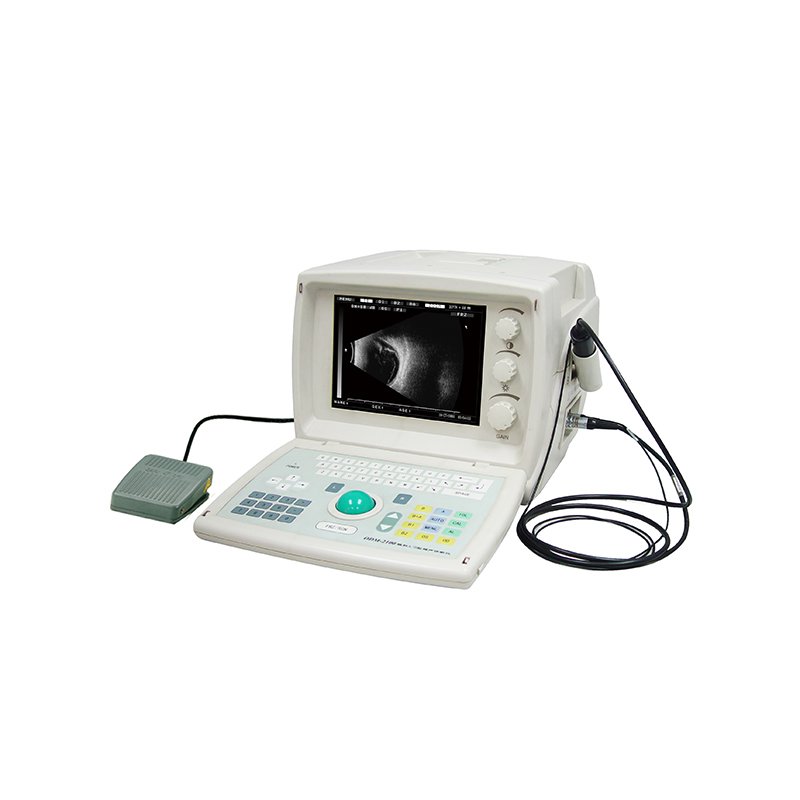

ODM-2100 Ophthalmic untrasonic AB Scanner
- Imaging Mode: B, B+A, B+B, A
- High-Resolution Images
- Memory: up to 4 Images
- Zoom: 8 Steps
- Image Post Processing
- Distance Measurement
- non-interlaced CRT Monitor
- Foldable Keyboard & Portable Design
- Trackball for Easy Measurement and Operation
- Real-time Clock
- Optional Image Output: Video Printer or Workstation
Additional information
Product Details
A Scan
A Probe with 10MHz
Accuracy: ≤±0.06mm
Measuring Range: 15 ~ 39mm
Measuring Method: Immersion & Contact
Measuring Mode: Normal, Dense Cataract, Aphakic, Special, Manual
IOL Power: SRK/T, SRK-II, BINKHOST-II, HOLLADAY, HOFFERQ, HAIGIS
10 inch CRT Screen, Foldable Keyboard & Tracing Ball
B Scan
Probe with 10MHz
Display Mode: B, B+B, B+A
5 Segments TGC
Delay Depth: 0 ~ 15mm
Dynamic Replay: 5.6 sec
