Portable Auto Refractometer SW-800
- Using the ARM processor and the latest domestic image processing, the system is fast and the image is clear
- Japan’s mature optical path system, humanized automatic mist measurement process, to reduce the error caused by adjustment, more precise measurements
- Light rack with integral casting, CNC machining, the measuring system is more stable, good consistency

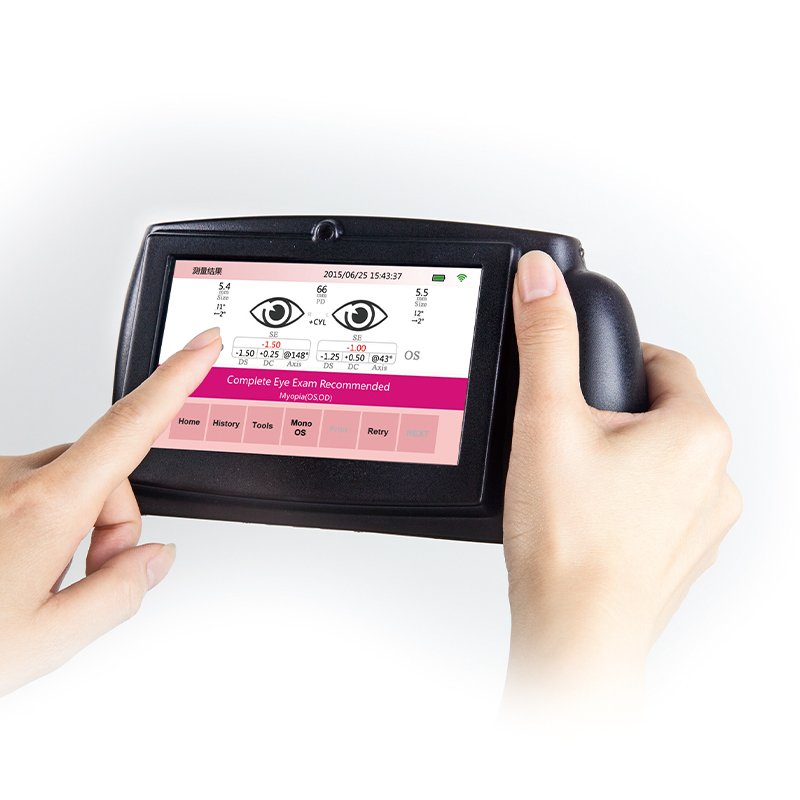

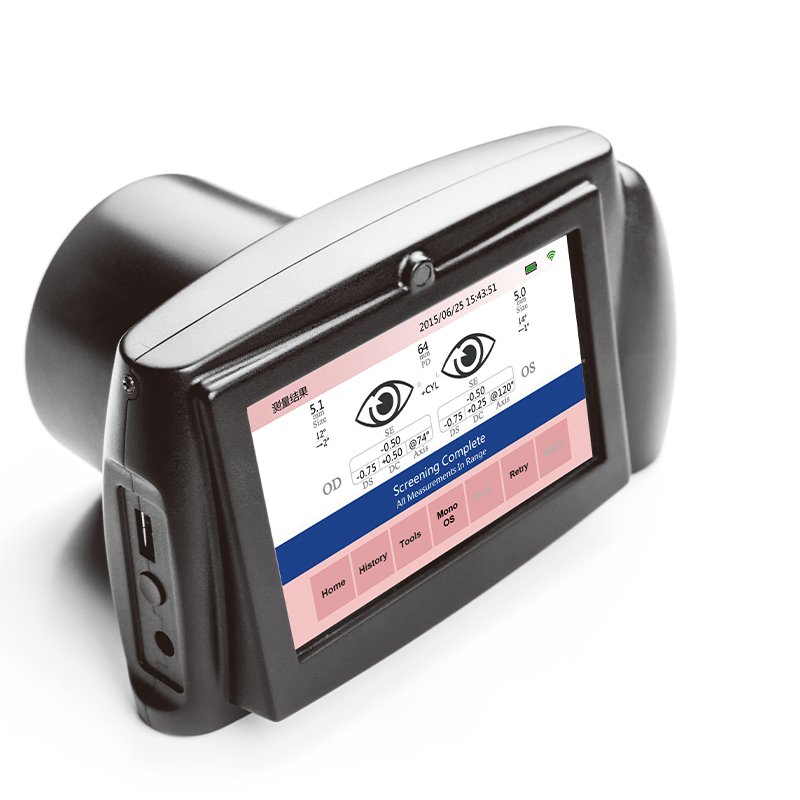

- Color LCD display, 5.7 inches man-machine interface is more comfortable
- PD Automatic measurement function, automatically PD value
- One key lock function, quickly locking mobile platforms
- Innovative designs, accord with the structure of human body engineering, to bring customers good aesthetic feeling and comfortable
- Data transmission with CV7000, improved efficiency of online
Additional information
Product Details
| Operation mode | Bino/Mono |
| Optometry | Automatic |
| DS | Range: -7.50D~+7.50D, Resolution: 0.25D/0.01D |
| Accuracy: ±0.50D | |
| DC | Range: 0.00D~3.00D, Resolution: 0.25D/0.01D, Accuracy: ±0.50D |
| Axis | Range: 1°~180° Axis: Range 1°~180° |
| Resolution: 1° Accuracy: ±5° | |
| Pupil size | Range: 4.0mm~9.00mm |
| Resolution | 0.1mm Accuracy: ±0.1mm |
| Pupil distance | Range: 35mm~80mm |
| Resolution: 1mm, Accuracy: ±1mm | |
| Gaze | 0°~20° |
| Measuring distance | 1m±5cm |
| Time per measurement | ~1s |
| Fixation target | Light flash, attractive sound |
| Date interface | Wi-Fi, USB |
| Battery | Rechargeable lithium batteries, 6 hours of duration, Replaceable |
| Size | 180mmX130mmX110mm |
| Display | 5-inch touch screen |
| Weight | 0.8Kg |
| Optional accessories | Camera tripods, printer, etc |
