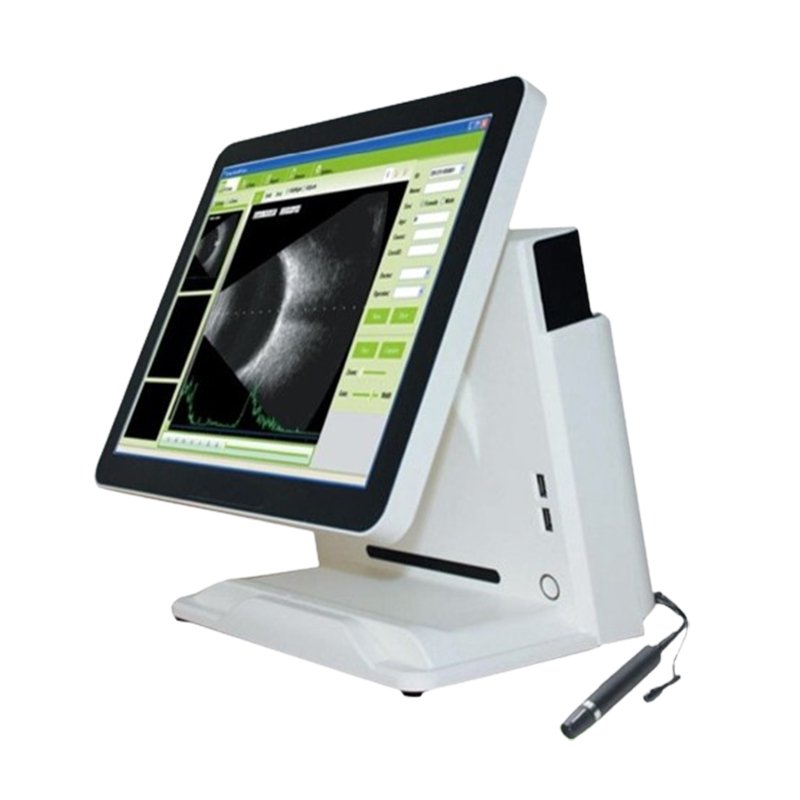

SAB-500 Ophthalmic Portable A/B Pachymeter Ultrasound Scanner
- 15 inch LED Touch Screen, All-in-one, Pretty, portable
- Integrated Image Capture
- Integrated Patient Database
- Integrated Report Editor
- Can Work With Battery
SAB-500 A/B Scan with normal, vitreous body enhancement, retina observation mode, mainly used for diagnosis of intraocular diseases, display the location, shape range of the focus of infection and the relationship with the surrounding tissue. Can be diagnosed as vitreous opacity, retinal detachment, eye base tumors, etc. eye diseases. A scan is used to measure anterior chamber depth, lens thickness, axial length, calculate the diopter of implant IOL as well.
Additional information
Product Details
A scan:
Frequency:10MHz, with LED
Depth: 40mm
Precision:±0.05 mm
Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length, and average
Eye mode: Phakic / Aphakic / Dense / Various IOL
IOL Formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY,BINKHORST-II, HAIGIS
Stat. Calculation: Average and standard deviation
Store: 10 Scanning results for each eye
B scan:
Frequency: 10MHz/20MHz (optional) ,Magnetic driven, noiseless
Scanning Mode: Sector Scanning
Magnify： Multi continuous magnification, Real-Time magnification
Resolution: Lateral ≤0.3mm; Vertical≤0.2mm
Geometry position precision: Lateral ≤10%; Vertical≤5%
Depth:60mm
Enhance the part of the vitreous body and retina
Gain of probe：30dB-105dB
Scanning Angle:53°
Gray Scale: 256
False Color: Multi-colors. OCT
measurement type: multigroup distances, perimeters, and areas
Image postprocessing: multiple curves processing, Pseudo-color processing curve
Movies: 100 images movie review, AVI JPG format image output
Others:
Display Mode: B, B+B, B+A, A
Hint: preset keyword
Case Search： Multi-keywords
Screen: 15 inch LCD
Built-in battery: can use 4 hours
