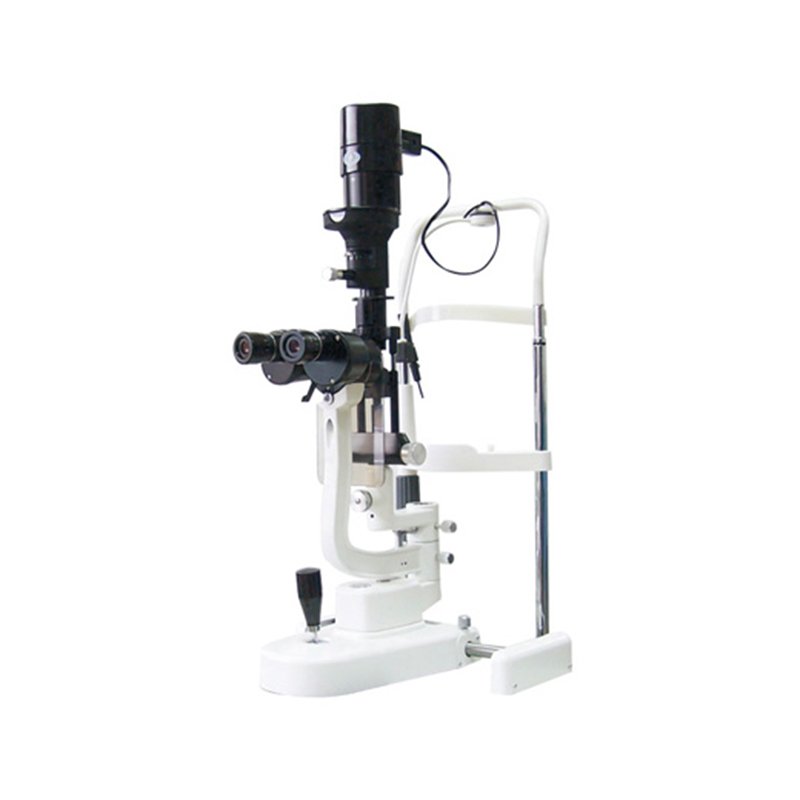

Slit Lamp Microscope YZ5J
- Converging stereoscope microscope provides clear images.
- Imported Schott optics from Germany reduces optical distortion, increases clarity and depth of focus.
- All the optical lenses are moistureproof, mildewproof, and anti-reflected treated.
- Two-step magnifications (10X, 16X) can be shifted by a lever under ocular
- All the joints can be connected by accessories with international standards.
Additional information
Product Details
Microscope Type | Converging stereoscope microscope |
Objective Magnification | Two Steps Magnifications by shifting lever under ocular |
Eyepiece | 10x |
Magnifications | 10x(φ18mm), 16x(φ14.5mm) |
Pupil Distance | 55mm~82mm |
Diopter Adjustment | -5D~+6D |
Slit Width | 0mm~9mm adjustable (Slit is round when the slit width is 9mm) |
Slit Height | 1mm~8mm adjustable |
Slit Angle | 0°~180°adjustable |
Slit Inclination | 5°,10°,15°,20°, four steps adjustable |
Diameter of Light Spot | φ9mm, φ8mm, φ5mm, φ3mm, φ2mm, φ1mm, φ0.2mm |
Filter | Heat Absorption, Grey, Redfree, Cobalt Blue |
Illumination Bulb | 12V/30W Halogen Bulb |
Input Voltage | AC 220V ±22 V, AC 110V±11 V |
Electrical Safety Standard | Conform to Standard:IEC601-1,Class I,Type B |
Packing Volume | 720mm x 495mm x 480mm |
Total Weight | 24Kg |
Optional Accessories | Applanation Tonometer, Measuring Eye Piece, Trihedron Lens, Gonioscope, Funduscope, Aspheric Lens, Retinal Lens, Teaching Tube, beamsplitter, smartphone photography adapter, eyepiece camera adapter |
