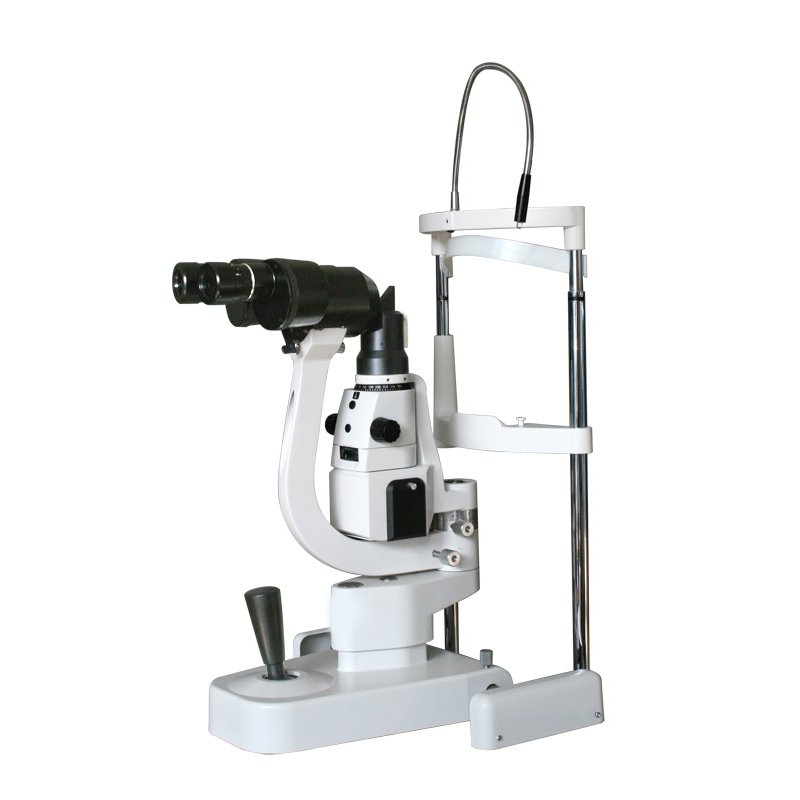

Slit Lamp Microscope YZ5X
- The Galilean stereoscopic microscope provides the practitioners unsurpassed clarity and sharpness and avoids double images.
- Five-step drum magnification.
- Optional accessories: Teaching Tube, CCD Camera, and Tonometer.
Additional information
Product Details
Microscope Type | Galilean stereoscope |
Objective Magnification | Two Steps by shifting lever under ocular |
Eyepiece | 10x |
Magnification (Field of View) | 10x(φ22.5mm) 16x (φ14mm) |
Pupil Distance | 55 mm~82 mm |
Diopter Adjustment | -6D~+6D |
Slit Width | 0mm~14mm adjustable(slit is round when the slit width is 14mm) |
Slit Height | 1mm~14mm adjustable |
Slit Angle | 0°~180° adjustable |
Diameter of Light Spot | φ14mm, φ9mm, φ5.5mm, φ0.3mm |
Slit Inclination | No |
Filter | Heat Absorption, Redfree, Cobalt Blue |
Illumination Bulb | 6V/20W Halogen Bulb |
Input Voltage | AC220V±22 V; AC110V±11 V |
Electrical Safety Standard | Conform to Standard IEC601-1, Class I, Type B |
Total Weight | 23Kg |
Packing Volume | 720mm*495mm*480mm |
Optional Accessories | Applanation Tonometer, Measuring Eye Piece, Trihedron Lens, Gonioscope, Funduscope, Aspheric Lens, Retinal Lens, Teaching Tube, beamsplitter, smartphone photography adapter, eyepiece camera adapter |
